(mm)
|
ステンレス

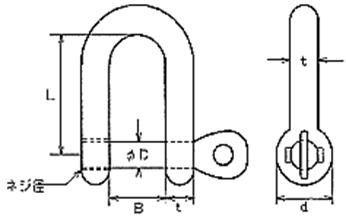

ロッキングピンシャックル
|
|
|
|
|
|
|
|
|
品番
|
D
|
L
|
B
|
d
|
t
|
捻径
|
Weight
|
使用荷重
|
使用荷重
|
税込価格
|
本体価格
|
|
|
(g)
|
(kgｆ)
|
(kN)
|
（円）／個
|
（円）／個
|
当社価格
|
|
|
(参考値)
|
(参考値)
|
|
|
税込
|
|
SPK-4
|
3.5
|
16
|
8
|
8
|
4
|
M-4
|
7
|
40
|
0.39
|
504
|
480
|
403
|
|
SPK-5
|
4.3
|
20
|
10
|
10
|
5
|
M-5
|
15
|
60
|
0.59
|
588
|
560
|
470
|
|
SPK-6
|
5.2
|
24
|
12
|
12
|
6
|
M-6
|
24
|
110
|
1.08
|
630
|
600
|
504
|
|
SPK-7
|
7
|
28
|
14
|
14
|
7
|
M-8
|
37
|
200
|
1.96
|
798
|
760
|
638
|
|
SPK-8
|
7
|
32
|
17
|
16
|
8
|
M-8
|
54
|
200
|
1.96
|
882
|
840
|
706
|
|
SPK-9
|
9
|
36
|
18
|
18
|
9
|
M-10
|
79
|
300
|
2.94
|
966
|
920
|
773
|
|
SPK-10
|
9
|
40
|
20
|
20
|
10
|
M-10
|
109
|
300
|
2.94
|
1,365
|
1,300
|
1,092
|
|
SPK-12
|
11
|
48
|
24
|
24
|
12
|
M-12
|
187
|
380
|
3.72
|
1,680
|
1,600
|
1,344
|
|
SPK-13
|
12.5
|
54
|
28
|
28
|
14
|
M-14
|
293
|
460
|
4.51
|
2,100
|
2,000
|
1,680
|
|
SPK-16
|
14
|
64
|
32
|
32
|
16
|
W-5/8
|
430
|
650
|
6.37
|
3,990
|
3,800
|
3,192
|
|
SPK-19
|
17
|
76
|
38
|
38
|
19
|
W-3/4
|
749
|
860
|
8.43
|
6,615
|
6,300
|
5,292
|
|
